We Turn Physical Objects Into Accurate Digital 3D Models
For reproduction, modification, digital archiving or Reverse Engineering.
The appropriate process and deliverables are determined by the size, geometry, surface characteristics, required accuracy and intended use of the digital model.

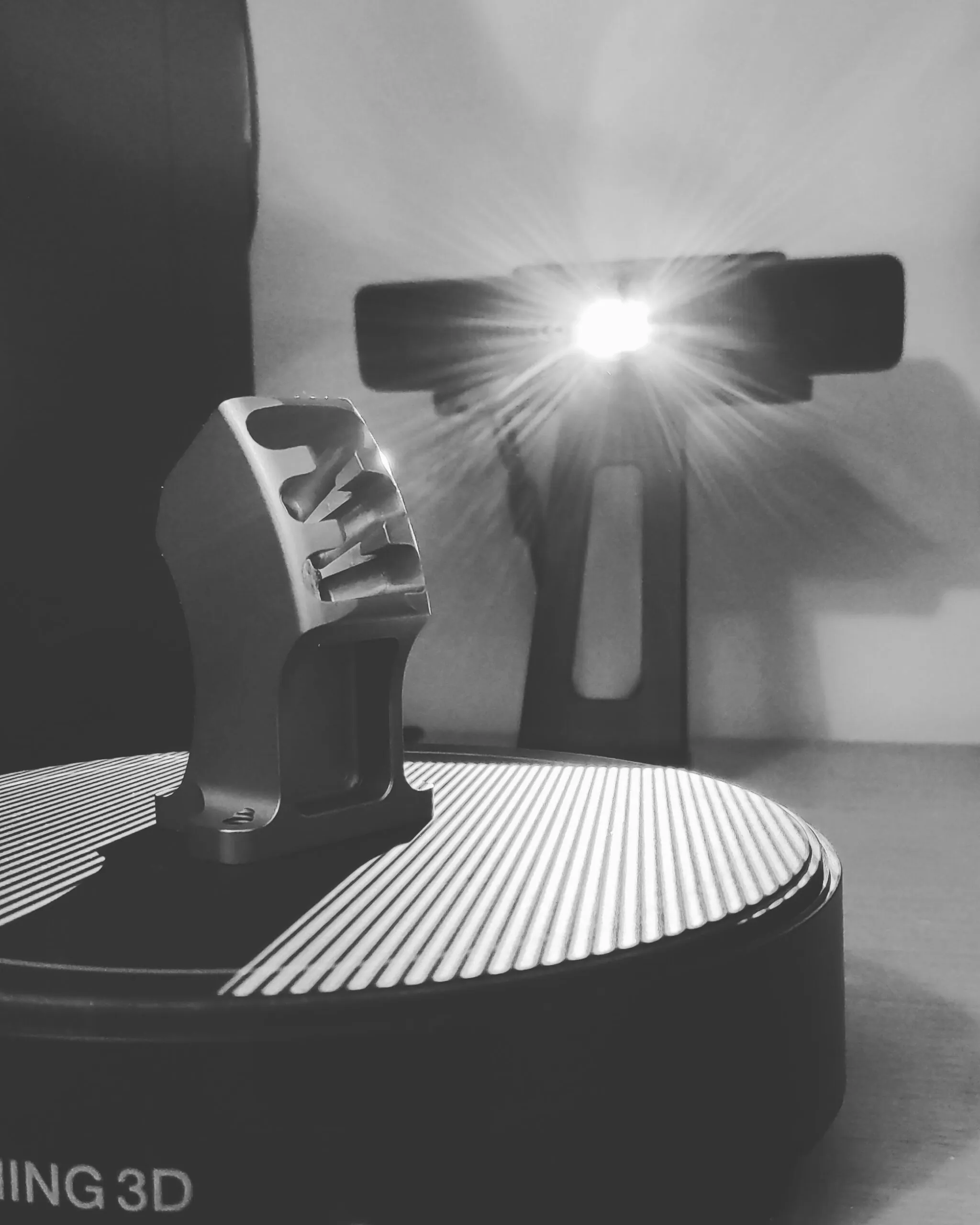

Digital capture of a component's geometry using a structured-light 3D scanner and rotating turntable.
How We Can Support Your Project
From initial digital capture to mesh processing and, where required, the creation of an appropriate CAD model.
Digital Capture of Physical Objects
We capture the external geometry of physical objects and components, including complex curves and detailed surface features.
Scan Data Processing
We align and process the captured scan data, removing unwanted elements and organizing the final geometry.
Digital Mesh Creation
We create 3D mesh models for digital archiving, visualization, reproduction or further processing.
Scan-to-CAD & Reverse Engineering
When an editable or production-ready model is required, we use the scan data as the basis for creating new, organized CAD geometry.
What Can Be Scanned
The suitability of each object is evaluated according to its technical characteristics and the level of accuracy required by the application.
3D Scanning Does Not Always Automatically Produce Editable CAD
The direct output of a 3D scan is typically a set of measurements that is processed into a point cloud or 3D mesh. This may be suitable for visualization, digital archiving or certain reproduction processes.
If the object needs to be modified, integrated into an assembly or used for manufacturing, additional Reverse Engineering work may be required to create an organized CAD model and, where necessary, manufacturing drawings.
A Few Details Are Enough
- Which object or area you need to capture
- The intended use of the digital file
- Which dimensions or details are especially important
- The required accuracy or tolerance
- The object's material, color and surface texture
- The file format you require for the final deliverable
What You Can Receive
- Processed scan data, where agreed
- Cleaned 3D mesh in an appropriate format
- STL, OBJ or PLY files depending on the application
- CAD model created through Reverse Engineering, when required
- STEP or IGES files according to project requirements
- 2D manufacturing drawings where required
How We Work Together
Application Evaluation
We evaluate the object, intended use, accuracy requirements and the type of deliverable you need.
Preparation & Scanning
We prepare the object where necessary and capture its geometry from the appropriate positions and angles.
Data Processing
We align the captured data, remove unwanted elements and create the organized digital result.
Delivery or CAD Creation
We deliver the agreed mesh or continue with Reverse Engineering to create CAD models and additional technical files.
Do You Have an Object That Needs to Be Digitized?
Send us photographs, basic dimensions and a brief description of the intended use. We will evaluate whether your project requires 3D scanning, a mesh, Reverse Engineering or a combination of these processes.
Discuss Your Project With Us →
